Cercarial Dermatitis in Schleswig-Holstein Distribution of Cercariae in Public Swimming Lakes

Cercarial dermatitis is a neglected zoonotic disease with distribution all over the world’s temperate zones. It is caused by cercariae, larval stages of parasitic blood flukes of the genus Trichobilharzia that normally parasitize waterfowl. If cercariae mistake people for hosts they can burry into human skin and erect an allergic reaction that leads to severely itching papules. Goal of this research was to get an overview over the distribution of cercariae in the bathing places of Schleswig-Holstein, the most northern state of Germany. Therefore all official bathing places were visited and searched for fresh water snails that are the potential intermediate hosts of cercariae. Water snails of different families and genera were collected and checked for the presence of cercariae. Conventional water samples from each snail were taken and checked for cercariae. Additionally slime samples were taken to test a new, time saving method of detection. In total 8 different kinds of water snails have been tested whereby the families of Lymnaeidae and Planorbidae proofed to be the most common hosts of cercariae. In total at 55% of the visited bathing places cercariae could be found. So there seems to be a wide distribution to this parasite in Schleswig-Holstein. Also an appearance of cercariae at bathing places with negative test results cannot be out ruled for future years because of variation of the appearance of cercariae depending on weather and temperature.

Cercarial dermatitis is a neglected zoonotic disease with distribution all over the world’s temperate zones. It is caused by the larvae of parasitic blood flukes of the family shistosomatidae that normally parasitize wild waterfowl [1]. Those larvae are released by freshwater snails, its alternate hosts and then try to penetrate the skin of waterfowl as potential regular hosts. Occasionally people with contact to infested water are mistaken for regular hosts and so the penetration of the human skin leads to the typical symptoms of cercarial dermatitis which is the development of allergic red rashes and severe itching [2-4].

In Schleswig-Holstein the most common cause of cercarial dermatitis are Cercariae of the genus Trichobilharzia that include T. szidati, T. regent and T. franki [5]. They appear mainly in warm summer months in stagnant freshwater and show a typical appearance with a forked tail, two eye spots and are shown in figure 1 [6,7].

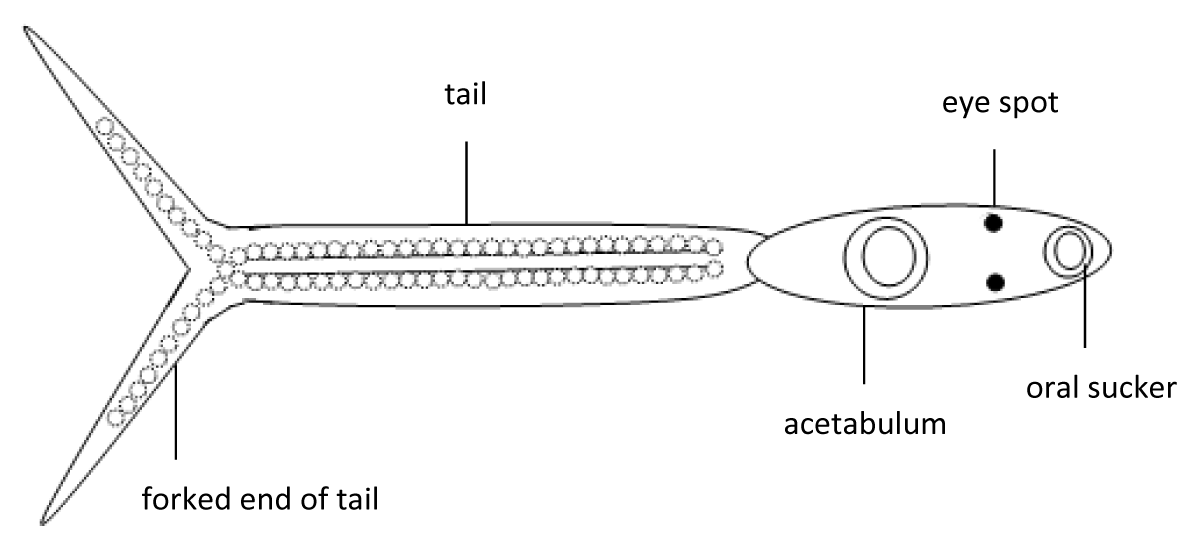

Figure 1: Schematic drawing of a cercaria (Butenschön 2016).

In just one day one water snail can release 100.000 cercariae [8]. These then swim around actively and search for a compatible host. When cercariae find a fitting skin surface they start the penetration by emptying secretion glands to etch the stratum corneum [9,10-12]. Once inside the skin the cercariae seek for blood vessels to enter. After reaching the bloodstream cercariae travel to the digestive organs and the liver (T. szidati and T.franki) or the central nervous system (T. regenti) [5]. Here the larvae develop to adult worms and begin to produce eggs, that are dispersed into water. Once in the water ciliated larval forms hatch and search for a suitable freshwater snail. After the penetration of the snail’s skin it becomes the new alternate host [12,13]. Searching for a fitting host cercariae can mistake humans for hosts and penetrate their skin [9-11]. Once inside the human skin, cercariae get stuck due to the initiated immune response. Typically at first the penetration of the skin causes tingling or burning sensations that are replaced by severely itching maculae and papulae. The skin reaction is the correlate of an allergic reaction and gets more severe with the rising number of infections by cercariae in terms of an allergic sensitization. As long as there is no desquamation of the skin, the dead cercariae the allergic reaction is kept active. This can last for several weeks [4,14].

In central Europe cercarial dermatitis occurs mainly from May to August. In this time the bathing season as well as the numbers of cercariae are at their peaks [7]. A special risk factor for cercarial dermatitis is the prolonged stay in shallow water. Here is the natural habitat for freshwater snails and therefore the number of cercariae is high. Especially children are infested by cercariae because they most often play in the warm and shallow water of the shores [15].

The goal of the research was to determine the exact distribution of cercariae all over Schleswig-Holsteins freshwater bathing places. Therefore the parasites alternate hosts were collected and examined for infestation at all official bathing places. Additionally a new method for detecting cercariae was developed and tested.

To overview the registered cases of cercarial dermatitis data about cases of the past years were provided by health offices of every administrative district. Unfortunately the submitted information was fragmentary so fresh data from every official bathing place was collected. Therefore freshwater snails were collected by hand or net systematically at each bathing place in a definite time range. After the first snail was found the search was continued for exactly 15 minutes. If no snail was found in 30 minutes the search was classified as not successful. All snails were kept in labeled plastic bags containing water from the corresponding bathing place a sufficient air circulation was ensured. Such bags were kept in shade and at environmental temperature to keep conditions as realistic as possible. Snails that were kept over several days were given lettuce and customary forage for fish. Every water snail was examined and its genus and species were determined using data provided by Jekel and Zick [16], Sturm [17] and Zettler [18]. After that the snails were put into a glass bowl with a diameter of 7 cm filled with 25°C warm tap water (modified after [19]). The bowls were placed in daylight for 15 minutes to provoke the shedding of cercariae (modified after [6]). Then a water sample was taken and put on an object slide to be examined through a microscope. Found cercariae were classified according to research results of Walter Neuhaus [12], Ilse Jekel and Daniela Zick [16] as well as Anna Faltynkova [3,20]. A detailed classification of cercariae was impossible due to the distinct similarities of the species. They were classified by the existence of eye spots (e.g. T. szidati) and shape of the tails. Cercariae that are a typical cause for dermatitis show two eye spots and a classically forked tail. In consequence only water samples containing such cercariae were labeled positive.

Since the conventional method of detecting cercariae takes quite some time additionally a new method was tried. As soon as water snails begin to move they produce slime to glide on. As in the common test for cercariae snails were put in tap water under equal conditions for 15 minutes. The shed slime was taken with a pipette at the same time as the conventional sample to keep both methods comparable. The slime sample was put on an object slide and was examined under a microscope. As soon as one living cercaria with eye spots and a forked tail was found, the sample was labeled positive.

According to collected data from public health services and the department for social services Kiel bathing places from all rural districts were registered (Figure 2). Table 1 gives an overview of the distribution of bathing places in all districts. So at a total of 155 bathing places samples were taken. Cercariae were found at 85 bathing places equaling 55%. At 7 bathing places no water snails could be found.

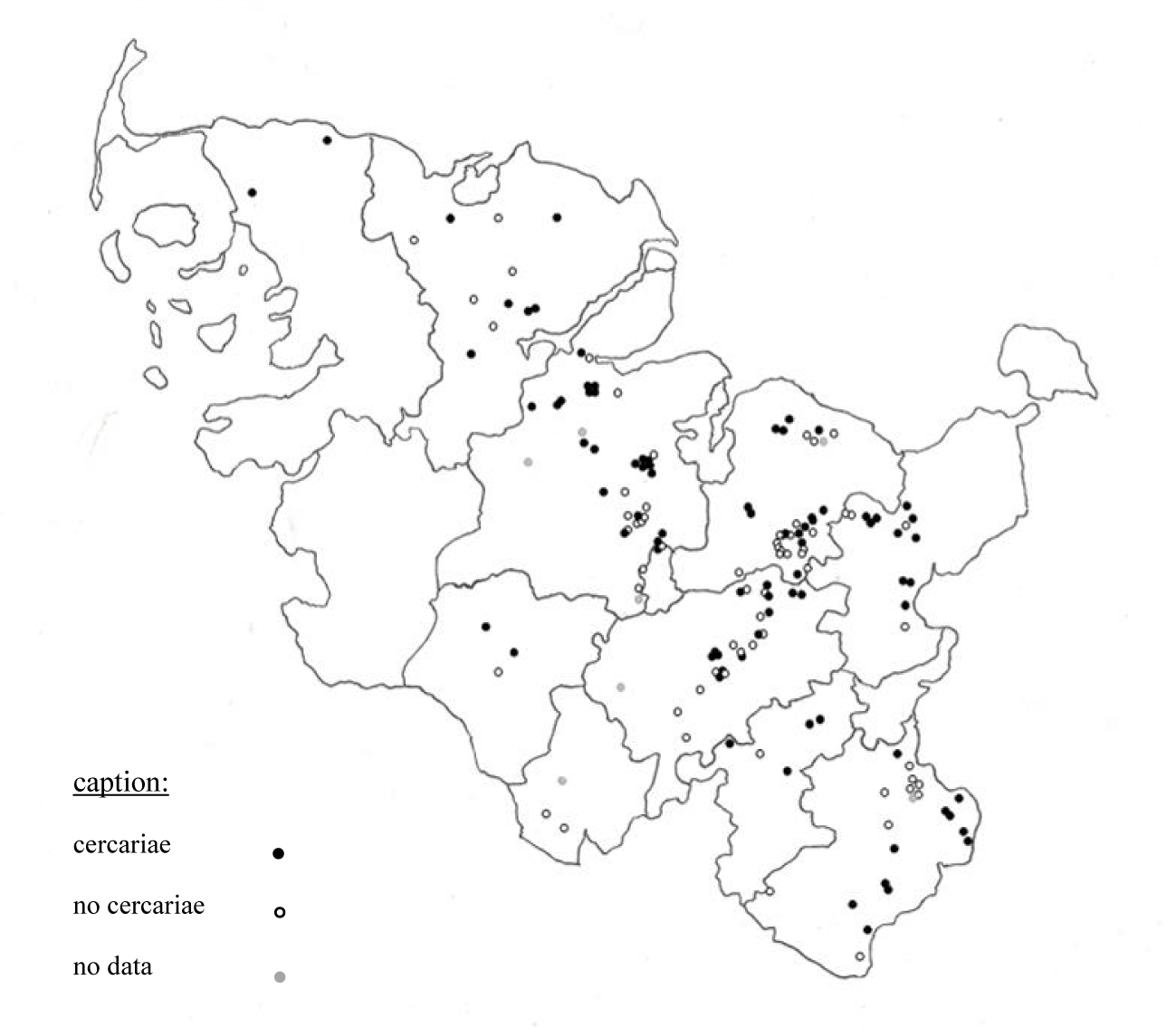

Figure 2: The occurrence of cercariae in different rural districts. (according to modified data of Geobasisdaten of Landesvermessungsamtes Schleswig-Holstein): overview of the occurrence of cercariae in different rural districts (Butenschön 2014).

Altogether 2311 freshwater snails have been collected at all bathing places. Cercariae with eyespots and forked tails were found in 341 (14.8%) water snails. Correspondingly 1970 water snails were tested negative for cercariae. The collected snails belonged to the family of Lymnaeidae with the genera Lymnaea sp. and Radix sp. the family of Planorbidae with the genera Planorbarius sp. and Planorbis sp. the families of Bithynidae, Viviparidae and Physidae as well as the family of Nerthidae with the genus Theodoxus sp.

Most common were snails of the genus Lymnaea sp. that contributed 931specimens to the collected water snails. In total they were 40.3% of found water snails. 249 (26.8%) of the Lymnaea sp. where shedding cercariae. So this genus of snails is the most common host for cercariae in this survey 682 (73.2%) of the Lymnaea sp. were found to shed no cercariae.

487 specimens of snails of the genus Radix sp. were found equaling 21.1% of all found water snails. 69 (14.2%) of the tested Radix sp. shed cercariae what makes this kind of snail the second leading genus in being host to cercariae. 418 (85.5%) of the collected Radix sp. did not shed cercariae.

Snails of the genus Planorbarius sp. were occasionally found. In total 127 specimens were collected equaling 5.5% of all water snails. 18 (14.2%) of the Planorbarius sp. shed cercariae. In 109 (85.8%) no cercariae could be found.

Also 127 snails of the genus Planorbis sp. were found occasionally equaling 5.5% of all found water snails. No Planorbis sp. shed any cercariae.

Another commonly found snail belonged to the family of Bithyniidae. In total 475 specimens could be found equaling 20.6% of all found water snails. None of these Bithyniidae was found to shed cercariae.

111 snails of the genus Theodoxus sp. were found equaling 4.8% of all snails. No Theodoxus sp. was positive for cercariae.

A rarely found snail belonged to the family of Physidae. In total 38 specimens were found equaling 1.6% of all water snails. No specimen shed cercariae.

Other rarely found snails belonged to the family of Viviparidae. In total 15 specimens were found which equals 0.7% of all snails. 5 (33.3%) of the found Viviparidae shed cercariae. 10 snails shed no cercariae.

Described positive results were found using the common detection method described earlier. A sample collected with this method often contained only few cercariae in the water on the object slide. So it was important to search the whole object slide. Additionally cercariae tend to swim around actively which makes the detection of a specimen even more difficult. There is quite a risk to label a sample negative if there are just few swimming cercariae. If a living cercaria is to be observed for a period of time the position of the object slide has to be corrected frequently to follow its movemen. The new tested method of examining the slime of snails sometimes proved to be more efficient. In many samples a similar number of cercariae was found as in the common tests. Partially large quantities of cercariae were found in the slime. Those cercariae often were stuck in the slime and so could be observed easily as shown in figure 3. Caught cercariae permanently tried to free themselves from the slime by abrupt movements of their tails. Despite of fierce movement some cercariae were caught for more than 20 minutes in slime so they could be observed thoroughly.

Figure 3: (Butenschön 2014).
a. single cercaria swimming freely.
b. multiple cercariae caught in slime.

Table 2 shows several test results exemplarily comparing the common detection method for cercariae with the tested method of examining the slime.

Whenever cercariae with eyespots and forked tails were found they were always present in small numbers. Besides this type of cercariae other cercariae not pathogenic for humans were found. Samples containing the other types of cercariae were not labeled positive. The most common type of cercariae found showed no eyespots but a forked tail. This type was present in great numbers sometimes several hundred cercariae could be found in a single sample. Other forms of cercariae were found less often and when found were present in a small number of individuals

Purpose of this research was to get an overview of the distribution of cercariae as a potential cause for cercarial dermatitis in freshwater lakes used as bathing places in Schleswig-Holstein. Therefore all official bathing places at freshwater lakes were visited and were tested for cercariae. For this purpose different freshwater snails serving as alternate hosts were collected. The snails with most frequent occurring of cercariae were from the family of Lymnaeidae with the genera of Lymnaea sp. and Radix sp. as well as the family of Planorbidae with its genus Planorbarius sp. [2,3]. Besides those species other water snails found were collected also to see if there was also an occurrence of cercariae. Therefore conventional methods of Graham [6], Sluiters, et al. [19] and Talpos and Elliott [21] were modified and used as a basis. The modification affected the amount of time for examining a single sample which was shortened and the light used. In this research only natural light was used to imitate natural conditions in a lake. In recited researches artificial sources of light were used [6,19,21]. The longer periods of time and artificial light in other researches were used to acquire as many cercariae as possible. Here a single cercaria was enough to label a sample as positive so the total number of cercariae was not relevant. So these aspects could be changed without falsifying the results. Besides the modified but proven methods used a new experimental approach in finding cercariae was tested. Here the slime produced by the snails was probed directly for cercariae. This method proved sufficient to check for cercariae in an even shorter amount of time. Additionally found cercariae stuck in slime can be observed for a longer period of time without constantly moving the object slide to follow swimming cercariae. This could be used in further examinations e.g. to determine species more easily. It should be tested tough how sensible the new method is for false negative results because of the short amount of time used to acquire samples and to detect further advantages and disadvantages.

The examination of different samples showed that there are different water snails in Schleswig-Holstein that serve as alternate hosts. Most often the detection of cercariae was possible in snails of the genera Lymnaea sp. and Radix sp. makting a total of 1418 specimens (62.5, 5%) of all found snails. This is supported by other scientific works. Especially snails of the family of Lymnaeidae are known to be host to many kinds of cercariae [3,22]. This is one reason why those snails are often used in laboratories to produce cercariae [4]. In different surveys of Lymnaea sp. collected from natural water bodies an average infestation rate was at 14.1% to 26.3% [3,12,23]. So the found infestation rate of 26.8% seems to be high but quite realistic since there have been measured infestation rates of 44.9% in single cases [22]. Also the genera of Radix sp. and Planorbarius sp. showed infestation in 14.2% of the specimens. Water snails of the families Physidae and Bithyniidae showed no cercariae in the results of this research. In other surveys both species proved to be hosts to cercariae [23].

For almost all bathing places visited a considerable number of water snails could be found. Especially the bigger species such as Lymnaea sp. and Radix sp. seem to occur on a regular basis and have a widespread distribution over all bathing places. Also often those snails are host to cercariae so a comprehensive appearance of cercariae all over Schleswig-Holstein can be supposed. Even at bathing places without findings of cercariae a general appearance cannot be excluded for there were a limited number of snails tested. Also environmental influences like e.g. the occurrence of blue algae at some bathing places were reasons for negative results. Such external influences were isolated cases. Further the number of cercariae depends greatly on time of the year and temperature and there is a deviation of the number of cercariae in different years [22]. So the results are just an extract not to be taken sweepingly. But it shows that in general the appearance of cercariae at many bathing places is possible.

1. Cort WW. Schistosome dermatitis in the United States (Michigan). Journal of the American Medical Association 1928; 90(13):1027-1029. doi:10.1001/jama.1928.02690400023010
2. Faltýnková A. Larval trematodes (Digenea) in molluscs from small water bodies near Šeské Budšjovice, Czech Republic. Acta Parasitologica. 2005; 50(1):49-55. https://bit.ly/3jCiXsg
3. Faltýnková A, Nasincová V, Kablásková L. Larval trematodes (Digenea) of planorbid snails (Gastropoda: Pulmonata) in Central Europe: a survey of species and key to their identification. Syst Parasitol. 2008 Mar;69(3):155-78. doi: 10.1007/s11230-007-9127-1. Epub 2008 Jan 22. PMID: 18210216.
4. Kourilová P, Hogg KG, Kolárová L, Mountford AP. Cercarial dermatitis caused by bird schistosomes comprises both immediate and late phase cutaneous hypersensitivity reactions. J Immunol. 2004 Mar 15;172(6):3766-74. doi: 10.4049/jimmunol.172.6.3766. PMID: 15004181.
5. Rudolfová J, Sitko J, Horák P. Nasal schistosomes of wildfowl in the Czech Republic. Parasitol Res. 2002 Dec;88(12):1093-5. doi: 10.1007/s00436-002-0634-3. Epub 2002 Jul 6. PMID: 12444462.
6. Graham AL. Effects of snail size and age on the prevalence and intensity of avian schistosome infection: relating laboratory to field studies. J Parasitol. 2003 Jun;89(3):458-63. doi: 10.1645/0022-3395(2003)089[0458:EOSSAA]2.0.CO;2. PMID: 12880242.
7. Rastyazhenko NM, Vodyanitskaya SN, Yurlova NI. [THE EMISSION OF PLAGIORCHIS MULTIGLANDULARIS CERCARIAE FROM NATURALLY INFECTED SNAILS LYMNAEA STAGNALIS IN CHANY LAKE, SOUTH OF WEST SIBERIA]. Parazitologiia. 2015 May-Jun;49(3):190-9. Russian. PMID: 26373192.
8. McClelland G, Bourns TK. Effects of Trichobilharzia ocellata on growth, reproduction, and survival of Lymnaea stagnalis. Exp Parasitol. 1969 Apr;24(2):137-46. doi: 10.1016/0014-4894(69)90150-7. PMID: 5813415.
9. Grabe K, Haas W. Navigation within host tissues: cercariae orientate towards dark after penetration. Parasitol Res. 2004 Jun;93(2):111-3. doi: 10.1007/s00436-003-1045-9. Epub 2004 Apr 29. PMID: 15118907.
10. Haas W, Haeberlein S. Penetration of cercariae into the living human skin: Schistosoma mansoni vs. Trichobilharzia szidati. Parasitol Res. 2009 Oct;105(4):1061-6. doi: 10.1007/s00436-009-1516-8. Epub 2009 Jun 19. PMID: 19543747.
11. Haas W, van de Roemer A. Invasion of the vertebrate skin by cercariae of Trichobilharzia ocellata: penetration processes and stimulating host signals. Parasitol Res. 1998 Oct;84(10):787-95. doi: 10.1007/s004360050489. PMID: 9797062.
12. Neuhaus W. Biology and development of Trichobilharzia Szidati n. Sp. (Trematoda, Schistosomatidae), a causative agent of dermatitis in humans. Parasitology Research. 1952;15(3):203-266. https://bit.ly/3vIuo6F
13. Ellis JC. Host-parasite relationships between Trichobilharzia ocellata and ducks previously exposed to the same parasite. 1974. https://bit.ly/3bqLKM5
14. Kourilová P, Syrůcek M, Kolárová L. The severity of mouse pathologies caused by the bird schistosome Trichobilharzia regenti in relation to host immune status. Parasitol Res. 2004 May;93(1):8-16. doi: 10.1007/s00436-004-1079-7. Epub 2004 Mar 18. PMID: 15034785.
15. Lévesque B, Giovenazzo P, Guerrier P, Laverdière D, Prud'Homme H. Investigation of an outbreak of cercarial dermatitis. Epidemiol Infect. 2002 Oct;129(2):379-86. doi: 10.1017/s0950268802007379. PMID: 12403114; PMCID: PMC2869897.
16. Jekel I, Zick D. Wasserschnecken und Zerkarien im Mattsee. Ber nat.-med Ver Salzburg. 2004;14:75-93.
17. Sturm R. Makrofotografie ausgewählter Weichtiere aus heimischen Gewässern. Mikrokosmos. 2011;100(5):267.
18. Zettler ML. Zur Taxonomie und Verbreitung der Gattung Theodoxus Montfort, 1810 in Deutschland. Darstellung historischer und rezenter Daten einschließlich einer Bibliografie. Mollusca. 2008;26(1):13-72. https://bit.ly/3nraARj
19. Sluiters JF, Brussaard-Wüst CM, Meuleman EA. The relationship between miracidial dose, production of cercariae, and reproductive activity of the host in the combination Trichobilharzia ocellata and Lymnaea stagnalis. Z Parasitenkd. 1980;63(1):13-26. doi: 10.1007/BF00927722. PMID: 7415420.
20. Faltýnková A, Nasincová V, Kablásková L. Larval trematodes (Digenea) of the great pond snail, Lymnaea stagnalis (L.), (Gastropoda, Pulmonata) in Central Europe: a survey of species and key to their identification. Parasite. 2007 Mar;14(1):39-51. doi: 10.1051/parasite/2007141039. PMID: 17432056.
21. Talpos B, Elliott B. Investigation of a topical ointment to prevent against the penetration of Trichobilharzia ocellata cercariae causing schistosome cercarial dermatitis. 2008. https://bit.ly/313zAqn
22. Loy C, Haas W. Prevalence of cercariae from Lymnaea stagnalis snails in a pond system in Southern Germany. Parasitol Res. 2001 Oct;87(10):878-82. doi: 10.1007/s004360100462. PMID: 11688896.
23. Selbach C, Soldánová M, Sures B. Estimating the risk of swimmer's itch in surface waters - A case study from Lake Baldeney, River Ruhr. Int J Hyg Environ Health. 2016 Oct;219(7 Pt B):693-699. doi: 10.1016/j.ijheh.2015.03.012. Epub 2015 Mar 30. PMID: 25900402.
